DESCRIPTION

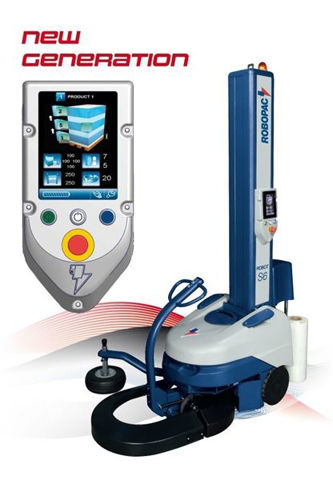

The ROBOT S6 is ideal for all manufacturers who require maximum warehouse logistics and management. Robot S6 demonstrates its leadership due to the new technical innovation for simplifying its use. ROBOT S6 is designed and produced according to the policies that distinguish Robopac in terms of reliability and durability. Every single detail was designed selecting the best materials on the market. No detail was left behind and the hi-tech solutions and craftsmanship can be seen in each inch of the machine.
PERFORMANCE
- Up to 30 Loads per Hour
- Cycle Expectancy: 200 – 300 Loads Based on Wrapping Patterns
- Max Load Size: Unlimited (W) x Unlimited (L) x 94” or 110”(H)
- Min Load Size: 24”(W) x 24”(L) x 10”(H)
- LOAD WEIGHT: Unlimited
NOTE: Consult for weights under 200#
ELECTRICAL REQUIREMENTS
- Control Power: 24 Volt DC Battery Pack
- Charging Systems: Built-in with Automatic Shut Off
- Charging Requirements: 110 VAC / 1 Phase / 60Hz
- Control Logic: Microcontroller
CONTROLS
- Rotation Speed: Variable to 260’/Minute
- Control Panel: Mast Mounted Color Touch Screen
- Roll Carriage: Variable and Independent Up / Down Manual Jog
- Pattern Selection: One Way / Two-Way or Layer
- Load Tensioning: Variable Wrapping Force Control
- Wrap Counters: Separate Top and Bottom
- Power: Emergency Stop Button and Cycle Pause
- Height Sensing: Automatic Height Sensing via Ultrasonic Sensor
- Senses Glass, Chrome and Dark Loads
- Banding: Programmable/ Automatic Banding Cycle
- Wrapping Menus: Six – Operator Programmable
- Film Break Detection: Rotation Sensor Feedback
- Cycle Counting: Cumulative Cycle Counter Resettable ShiftCounter
- Manufacturing Certification: ISO9001:2008
FILM DELIVERY SYSTEM
- Stretch PowerRoller-Stretch Variable 100% - 250%
- Carriage Lift: VDC Motor, Chain Driven
- Film Loading: “S-Pattern”
- Corner Compensation: Load Cell
- Safety: Patented Anti Fall Device – CE Approved
- Film Tail Treatment: Auto Film Cut
STRUCTURE
- Base Fabrication: Cold Forged Formed Steel Base
- Mast Construction: Cold Forged Formed Steel with Rounded Corners
- Fork Truck Portability: 3 Sided Access
- Pallet Detection: Quick Change Guide Wheel Height Adjustment
SAFETY
- Travel Path: Pressure Sensitive Bumper with Automatic E-Stop
- Visual Alarm: Flashing Light for Machine in Operation
- Auditory Alarm: Audible Cycle throughout the Wrapping Process
- Film Carriage: Patented Anti-Fall Device
- Safety Certification: CE and CSA Compliant
MACHINE SHIPPING DIMENSIONS
- 30"(W) x 112"(L) x 44"(H)
APPROXIMATE SHIPPING WEIGHT
